Overall Weight：≤ 690kg
Overall Dimension：1500×1000×2100mm
$1,000,000.00

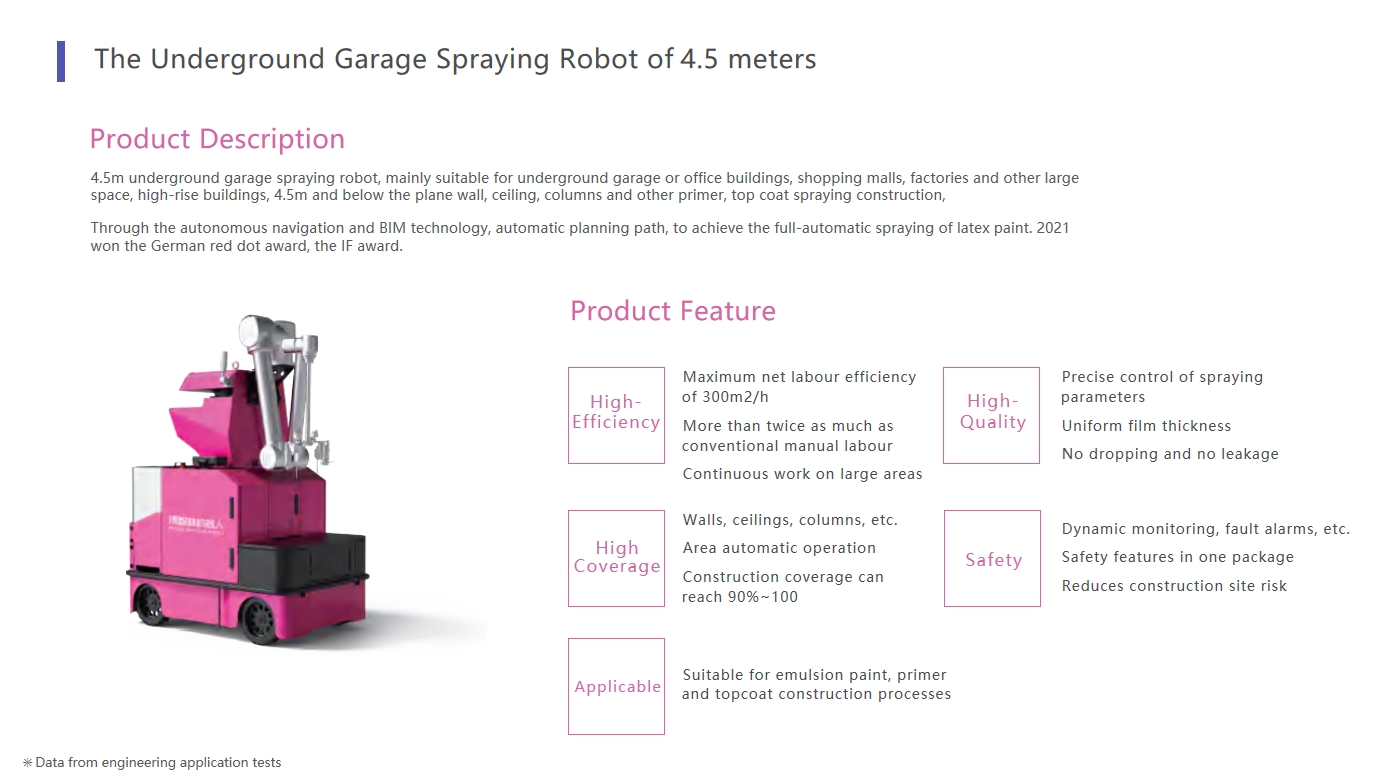

Product Description：

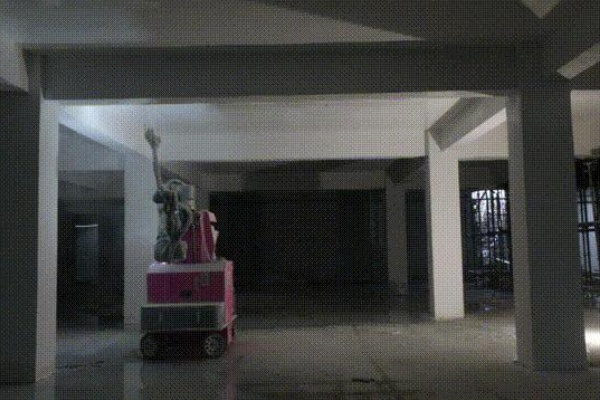

• 4.5m underground garage spraying robot, mainly suitable for underground garage or office buildings, shopping malls, factories and other large space, high-rise buildings, 4.5m and below the plane wall, ceiling, columns and other primer, top coat spraying construction
• Through the autonomous navigation and BIM technology, automatic planning path, to achieve the full-automatic spraying of latex paint. 2021 won the German red dot award, the IF award.
Product Feature :
• High- Efficiency • High- Quality
• High Coverage • Safety • Applicable

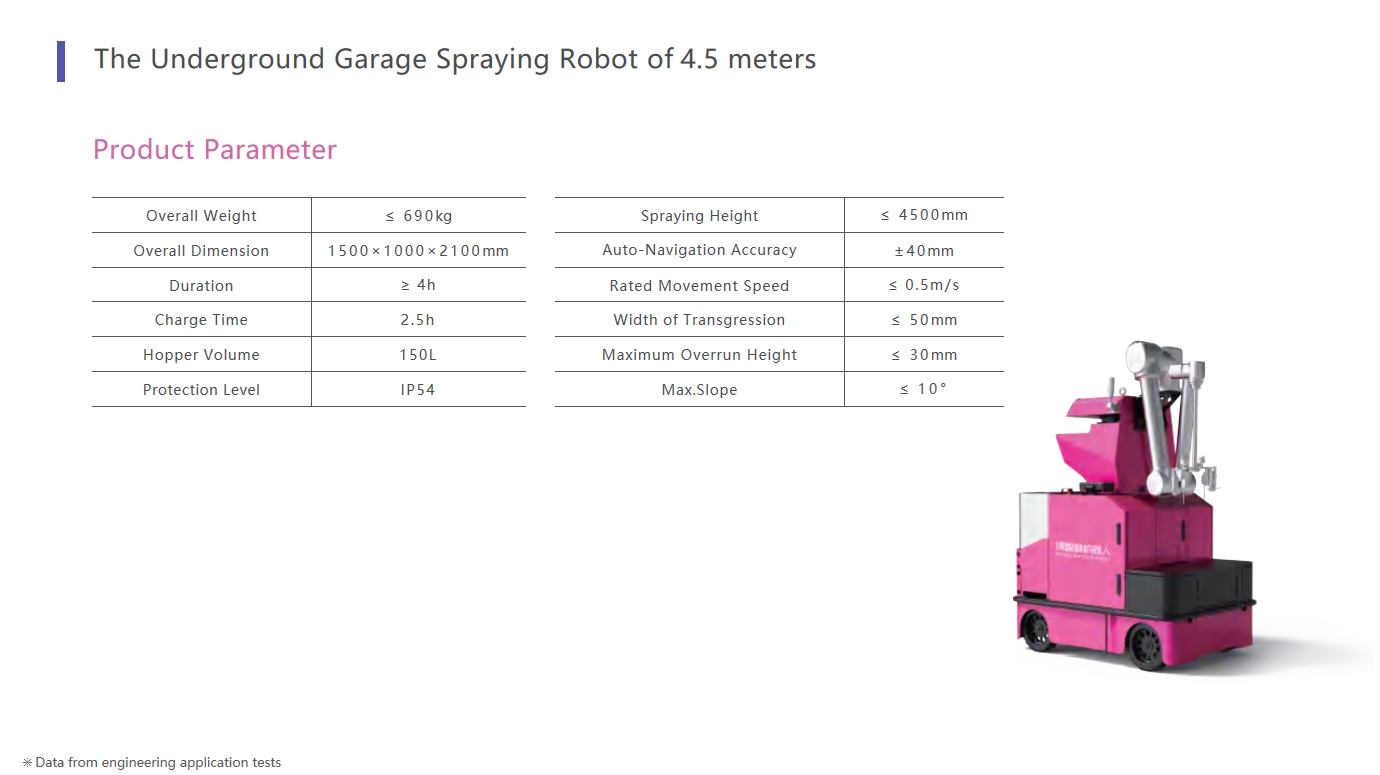

| Overall Weight | ≤ 690kg |
|---|---|
| Overall Dimension | 1500×1000×2100mm |
| Duration | ≥ 4h |
| Charge Time | 2.5h |
| Hopper Volume | 150L |
| Protection Level | IP54 |
| Spraying Height | ≤ 4500mm |
| Auto-Navigation Accuracy | ±40mm |
| Rated Movement Speed | ≤ 0.5m/s |
| Width of Transgression | ≤ 50mm |
| Maximum Overrun Height | ≤ 30mm |
| Max.Slope | ≤ 10° |
